Baja Designs Squadron Pro / Dual S2 Sport Triple Bumper Fog Light Kit - 2021+ Bronco (HD Modular Bumper)

  • Sale
  • Regular price $1,319.95
  • 5 available
Shipping calculated at checkout.
  • Two pairs of S2 Sport auxiliary lights (driving / wide cornering)
  • One pair of Squadron Pro Spot lights
  • Both Spot and Wide Cornering configuration
  • Maximum light output vs the other two kits available




Ford Squadron Pro/Dual S2 Sport Steel Bumper Fog Pocket Light Kit - Ford 2021-23 Bronco; Steel Bumper

We here at Baja Designs know that you use your Bronco for what it was designed for. That's why we offer the ultimate in lighting with the Squadron Pro/Dual S2 Fog Pocket Light Kit designed specifically for the factory Steel Bumper.

Light up the trail, lead the pack and differentiate yourself from the pack with a set of S2 Pros in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Pros in Spot. The Squadron Pro Spot beam focuses illumination further down the trail or road and is the go-to choice when you want to annihilate the night and blast away the darkness.

The Driving/Combo pattern on the S2 Pro is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern of the S2 Sport offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

This is a comprehensive kit and does not require any additional parts for installation.

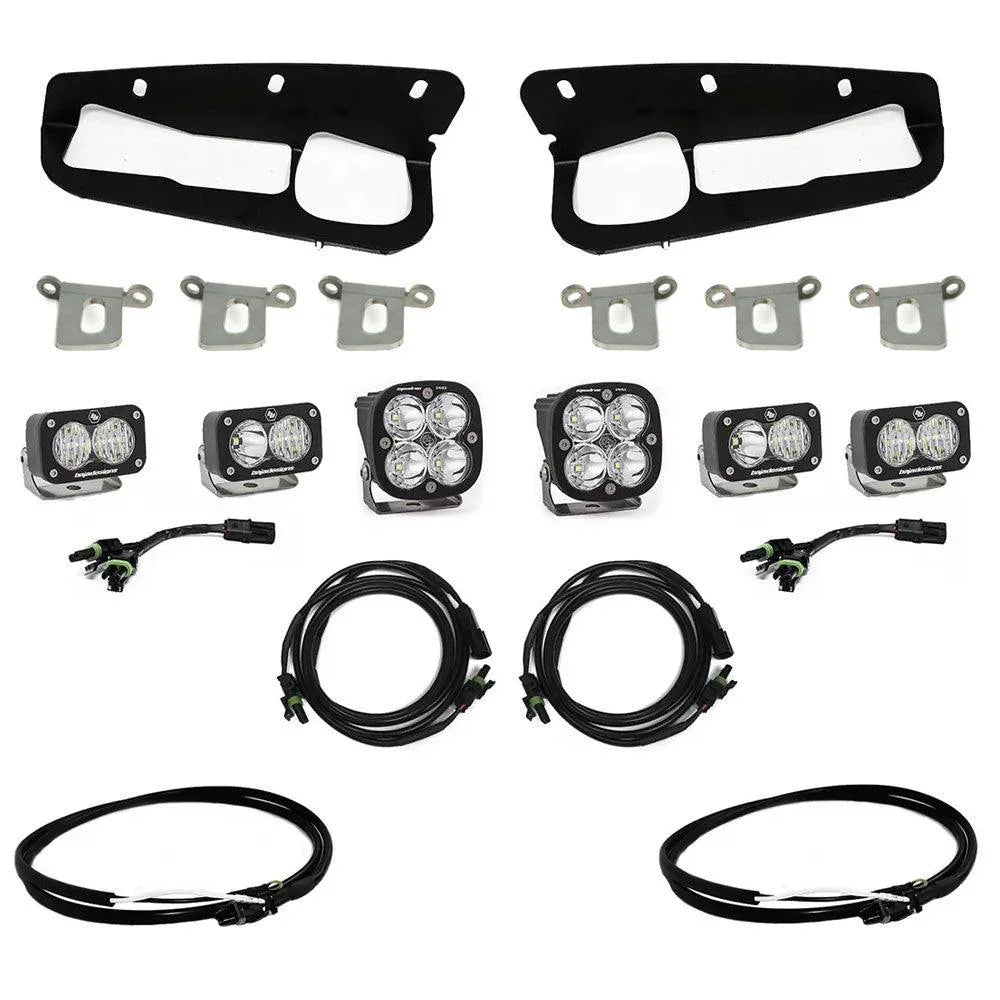

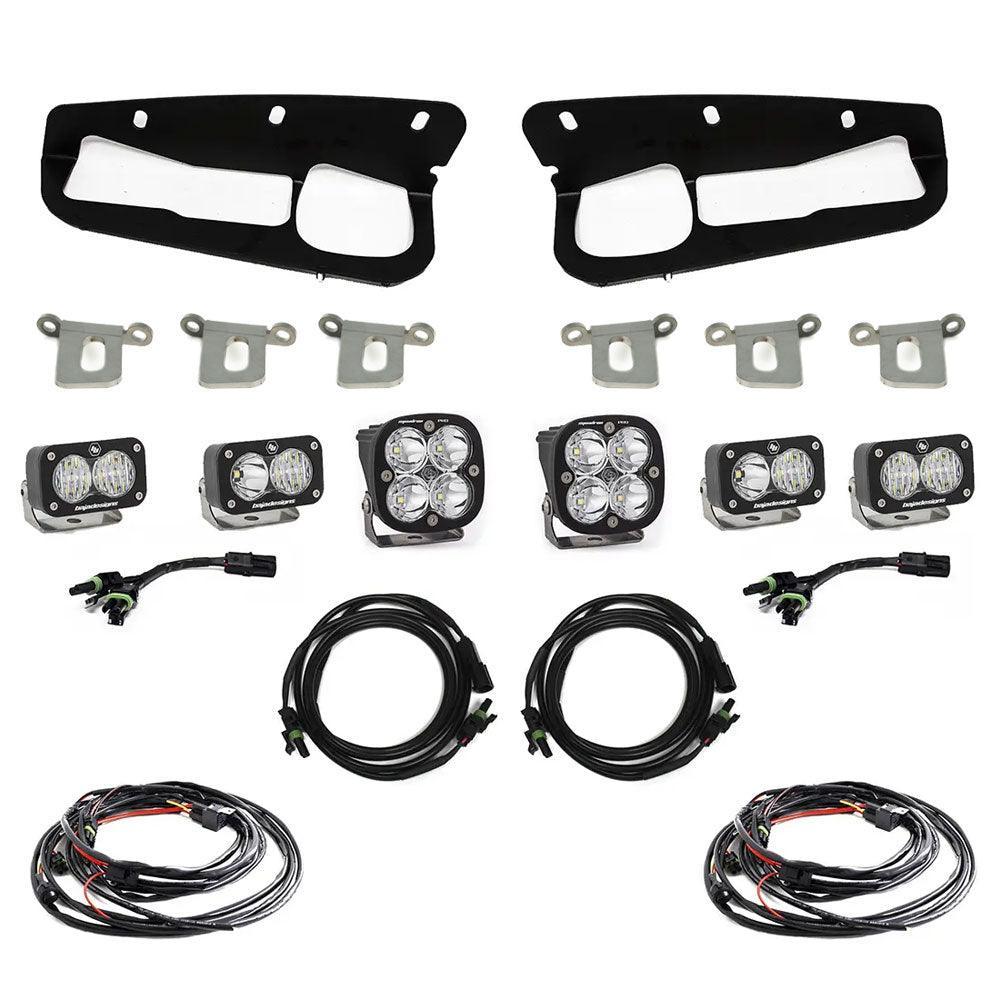

447763 Kit Includes: (2) S2 Pro Driving Combo (2) S2 Sport Wide Cornering (2) Squadron Pro Spot (2) Left and Right side fog light facia mounts (2) Wire Harnesses (640117) (2) 55" Splitter (613606) (2) Splitter (613607) All Necessary hardwear and parts bags. 447763UP Kit Includes: (2) S2 Pro Driving Combo (2) S2 Sport Wide Cornering (2) Squadron Pro Spot (2) Left and Right side fog light facia mounts (2) Upfitter Wire Harnesses (640093) (2) 55" Splitter (613606) (2) Splitter (613607) All Necessary hardwear and parts bags.

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

        Installation Guide:

        Download here.



        California Residents:  Prop 65,  WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

        FITS

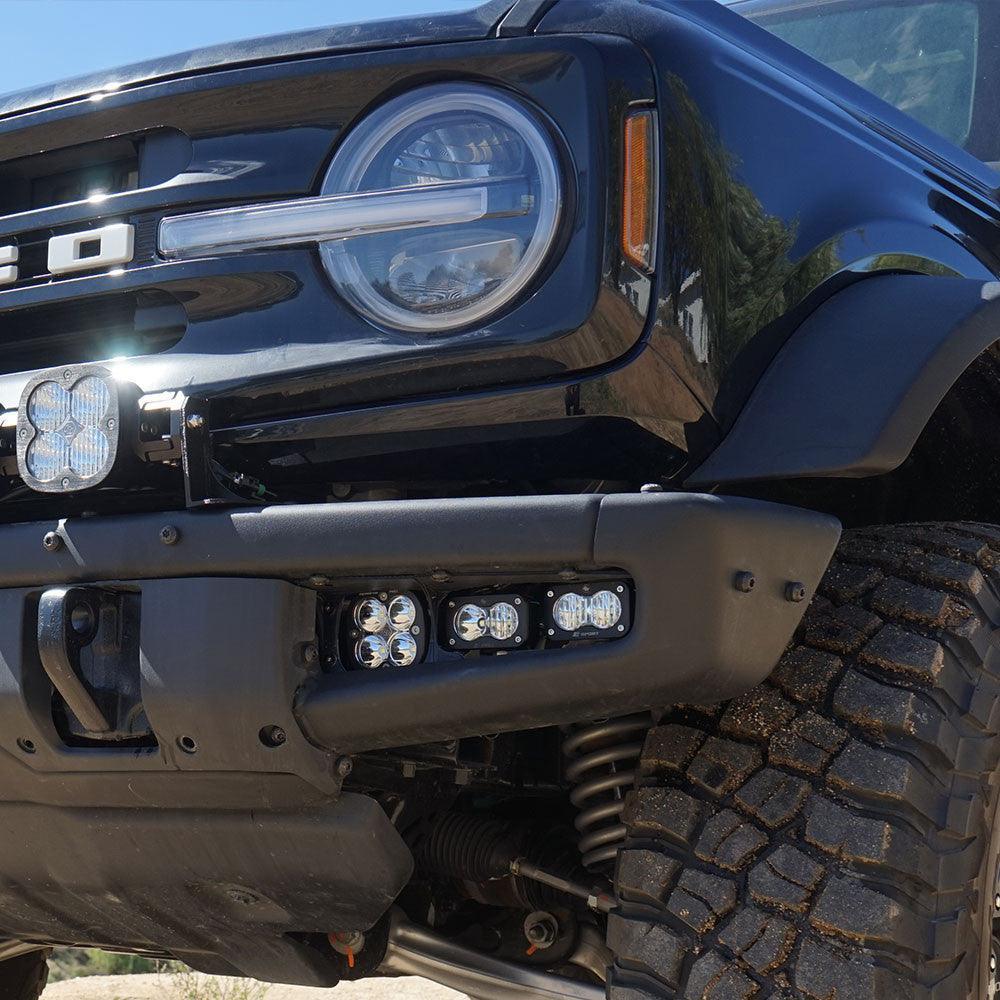

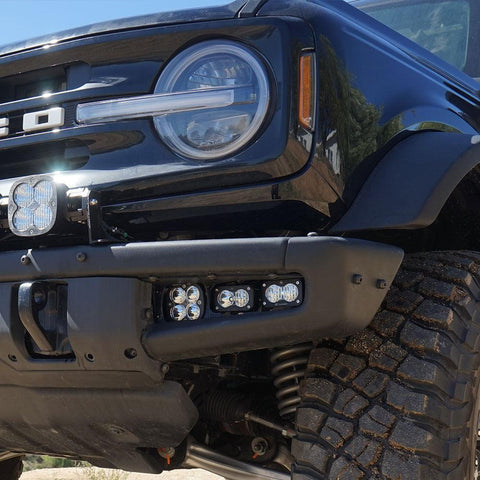

        Ford Bronco 2021+ with HD Modular Steel Bumper

        INCLUDED WITH KIT:

        SKU: 480003

        Dimensions

        Depth (in.) 1.680
        Height (in.) 1.760
        Length (in.) 2.930
        Weight (lbs.) 0.500

        Specifications

        Amperage Rating (A) 1.700
        Average Rated Life (hr.) 49,930
        Beam Pattern Driving/Combo
        Bezel Material Billet Machined Aluminum
        Brightness (Lumens) 2245
        Description Driving/Combo; Clear
        Housing Color Black
        Housing Material Hard Anodized and Powder Coated Cast Aluminum
        Lens Color Clear
        Lens Material Hardcoated Polycarbonate
        Light Quantity 1
        Lighting Modes Beam
        Lighting Quantity 2
        Lighting Technology LED
        Lighting Type Forward Projecting
        Mounting Hardware Included Yes
        Mounting Hardware Material Stainless Steel
        Overvoltage Protection Built-In
        Product Type S2 Pro LED Light Pod
        Wattage (W) 23.460
        Wiring Harness Included No

        Standards & Compliance

        Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
        Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
        Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

        SKU: 540005

        Dimensions

        Depth (in.) 1.680
        Height (in.) 1.760
        Length (in.) 2.930
        Weight (lbs.) 0.500

        Specifications

        Amperage Rating (A) 0.900
        Average Rated Life (hr.) 49,930
        Beam Pattern Wide Cornering
        Bezel Material Billet Machined Aluminum
        Brightness (Lumens) 1581
        Description Wide Cornering; Clear
        Housing Color Black
        Housing Material Powder Coated Cast Aluminum
        Lens Color Clear
        Lens Material Hardcoated Polycarbonate
        Light Quantity 1
        Lighting Modes Beam
        Lighting Quantity 2
        Lighting Technology LED
        Lighting Type Forward Projecting
        Mounting Hardware Included Yes
        Mounting Hardware Material Stainless Steel
        Overvoltage Protection Built-In
        Product Type S2 Sport LED Light Pod
        Wattage (W) 12.420
        Wiring Harness Included No

        Standards & Compliance

        Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
        Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
        Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

        SKU: 490001

        Dimensions

        Depth (in.) 2.770
        Height (in.) 3.070
        Length (in.) 3.070
        Weight (lbs.) 0.750

        Specifications

        Amperage Rating (A) 3
        Average Rated Life (hr.) 49,930
        Beam Pattern Spot
        Bezel Material Billet Machined Aluminum
        Brightness (Lumens) 4095
        Description Spot; Clear
        Housing Color Black
        Housing Material Hard Anodized and Powder Coated Cast Aluminum
        Lens Color Clear
        Lens Material Hardcoated Polycarbonate
        Light Quantity 1
        Lighting Modes Beam
        Lighting Quantity 4
        Lighting Technology Cree LED (2 Types)
        Lighting Type Forward Projecting
        Mounting Hardware Included Yes
        Mounting Hardware Material Stainless Steel
        Overvoltage Protection Built-In
        Product Type Squadron Pro LED Light Pod
        Wattage (W) 41.400
        Wiring Harness Included No

        Standards & Compliance

        Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
        Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
        Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
