Ford XL Linkable Roof Mount Light Kit - Ford 2021-On Bronco; 2022-On Bronco Raptor

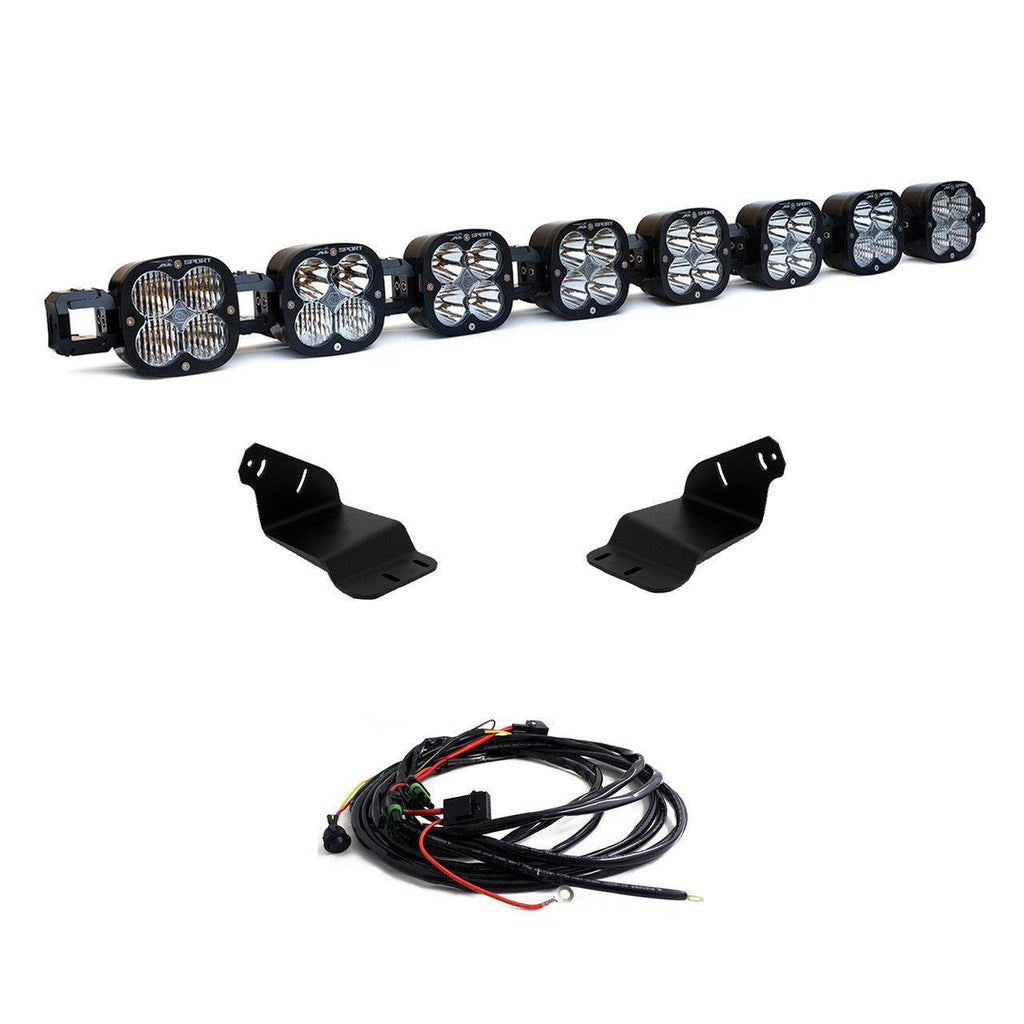

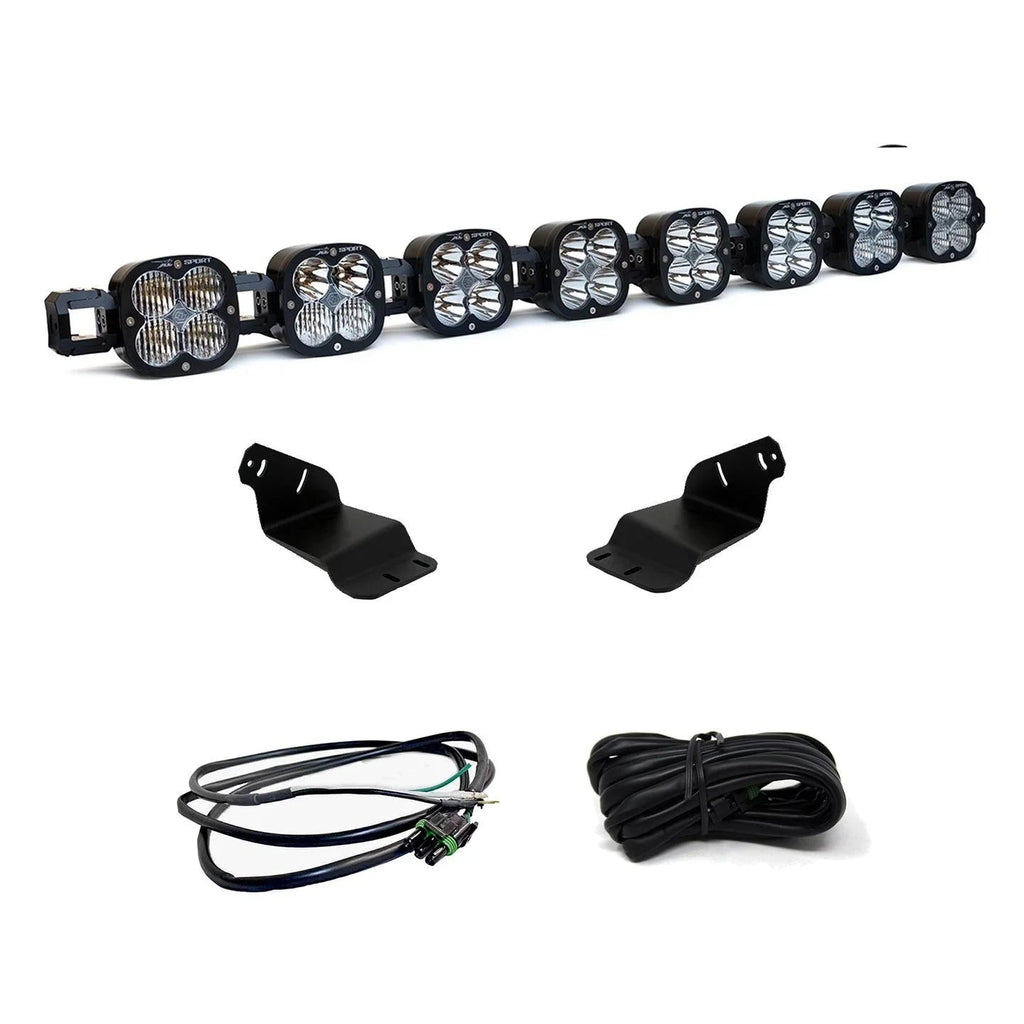

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 8 XL Sports, Links, vehicle specific mounting brackets, upfitter style wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain. This kit is a turn key system for the Bronco owner that is looking to take down the night, and give a standoff appearance to their vehicle. Please Note, the Bronco Raptor Upfitter wiring will have AUX1 and AUX3 colors switched when compared to the regular Bronco.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Warning: Installation of any roof mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories.
NOTE:Bronco roof bar kits willnotwork with factory roof racks.
Dimensions
Depth (in.) | 2.8 |
Height (in.) | 4.43 |
Length (in.) | 51.52 |
Specifications
Amperage Rating (A) | 16 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Multi-Pattern |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 25,200 |
Description | 8XL Sport; Multi-Pattern; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 8 |
Lighting Modes | Beam |
Lighting Quantity | 32 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | XL Linkable LED Light Bar |
Universal or Specific | Universal |
Wattage (W) | 208 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation
Download here.
