OS Lighting Spare Tire Wheel Ring Third Brake Light - *2021+ Bronco

  • Sale
  • $64.95
  • Regular price $79.95
  • 3 available
Shipping calculated at checkout.
  • Plug and play wiring (*Raptor see below)
  • Fits all 2021+ Bronco

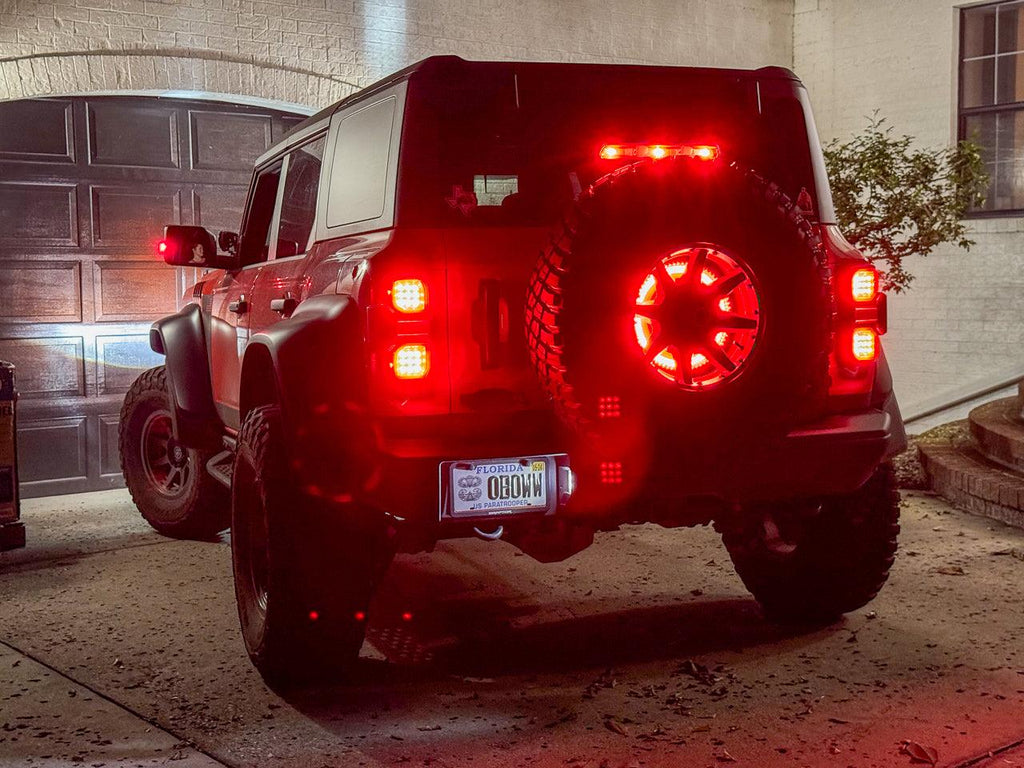

  • Bright, illuminated ring

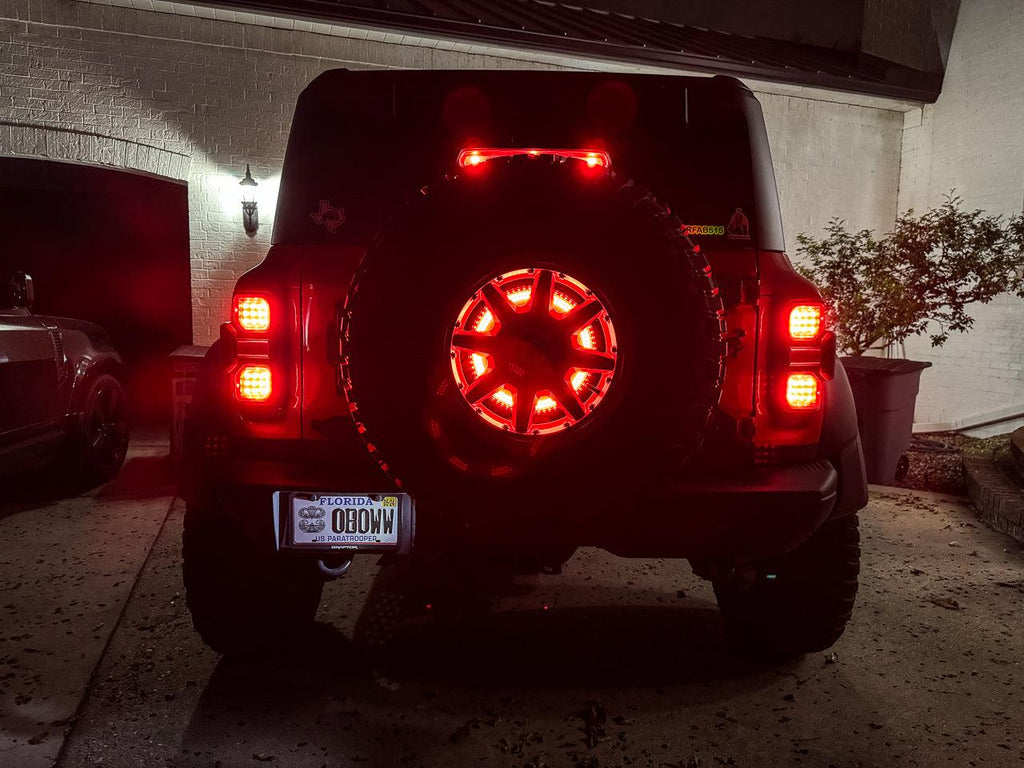

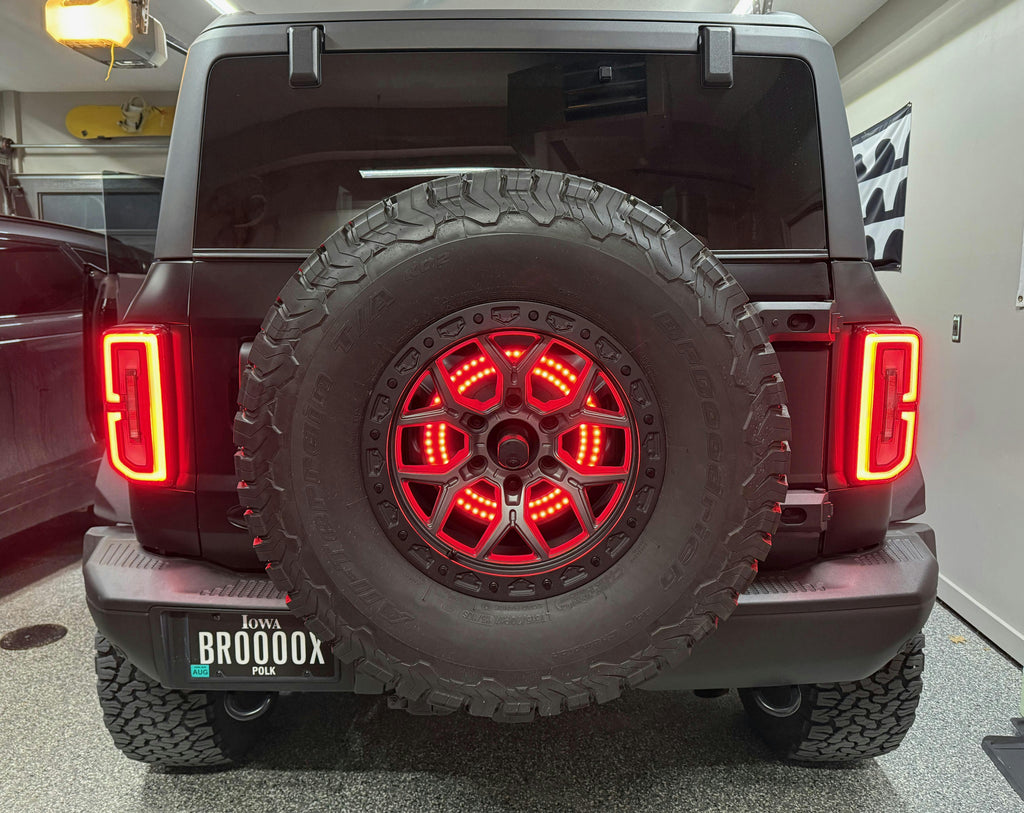

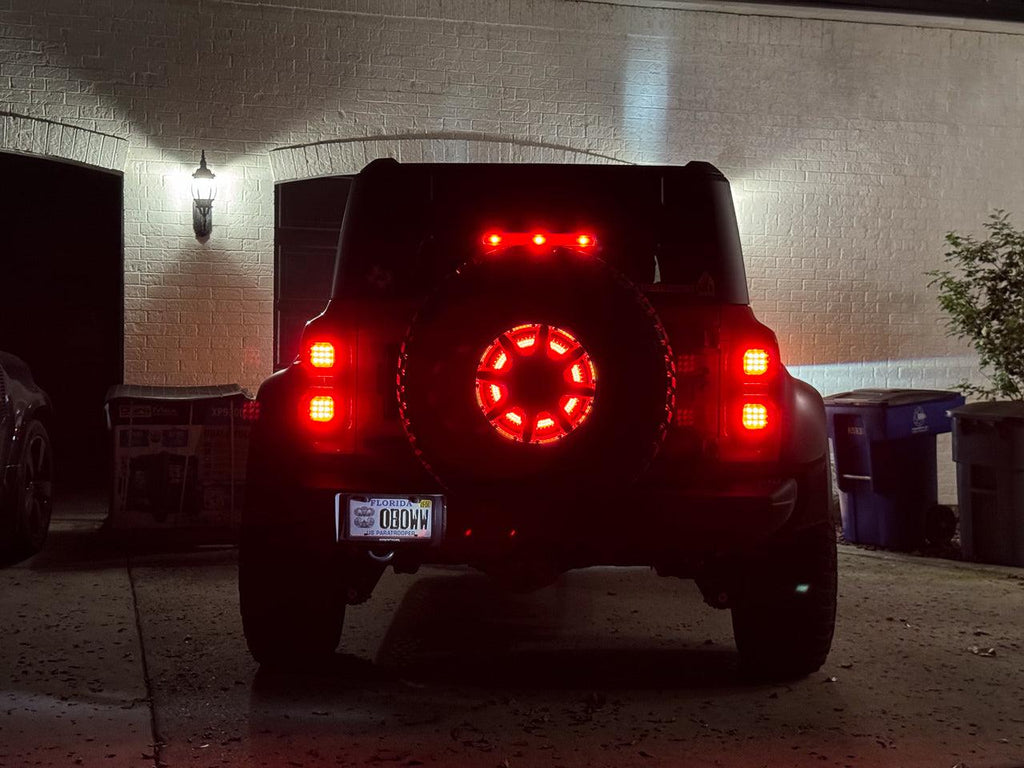

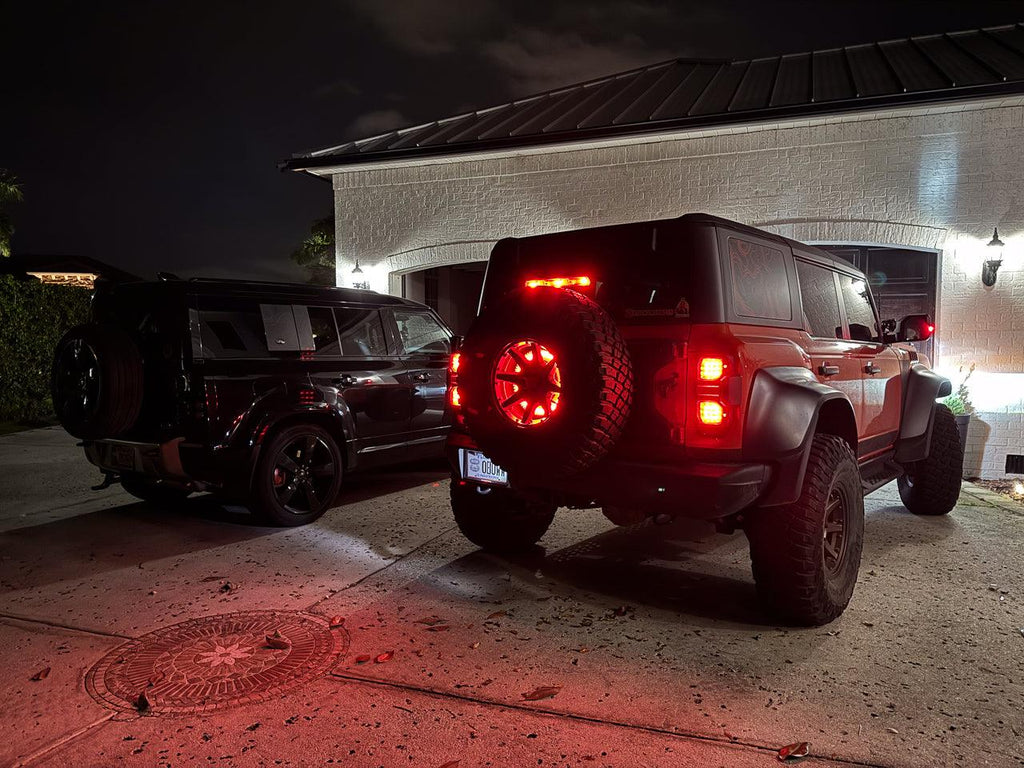

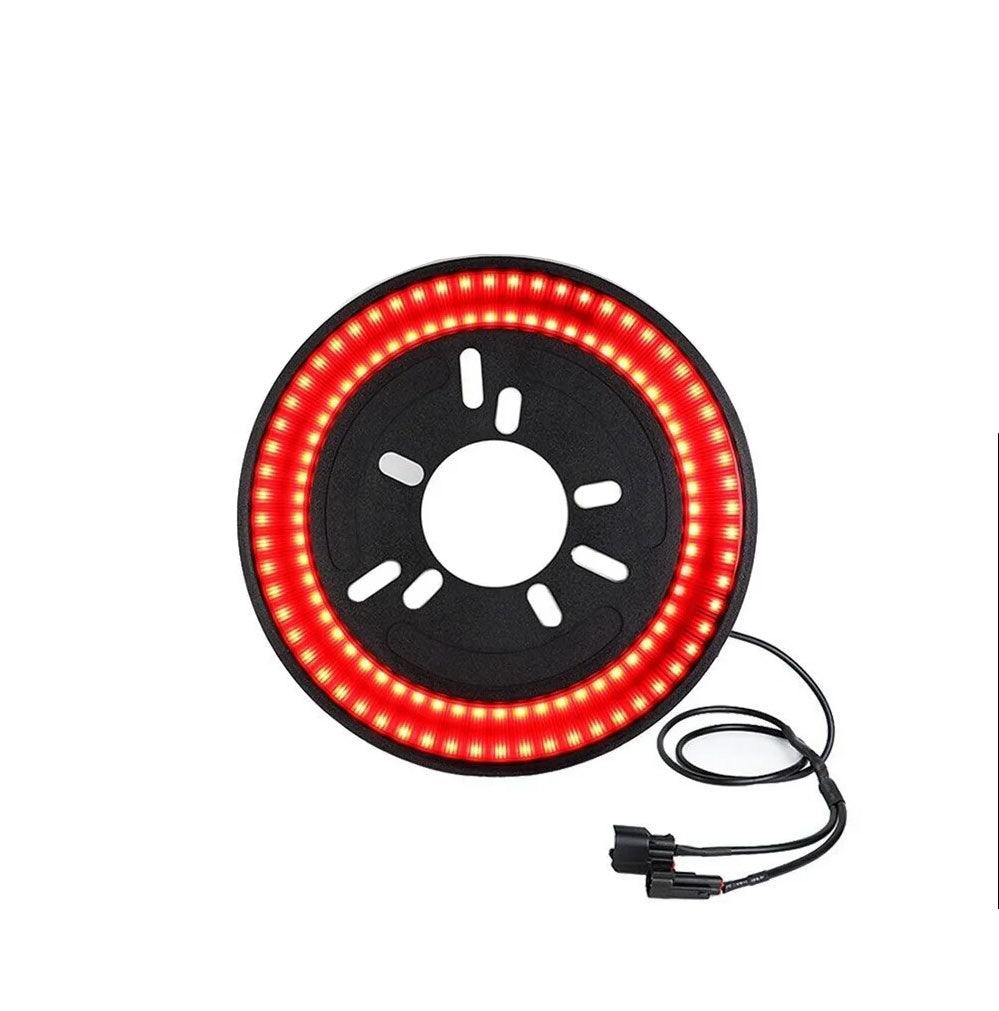

2021+ Bronco OS Lighting Spare Tire Wheel Ring Third Brake Light

Not only does this increase situation awareness for vehicles behind you, it looks great also.  Double rows of LED output a bright, yet not overwhelming amount of light.

Designed to fit all Broncos including the Bronco Raptor.  Put this on your Base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, Heritage or Everglades.

Plug and play wiring attaches inside the tail gate.  For Bronco Raptor, taps are required to install.  See available add ons.

Installation

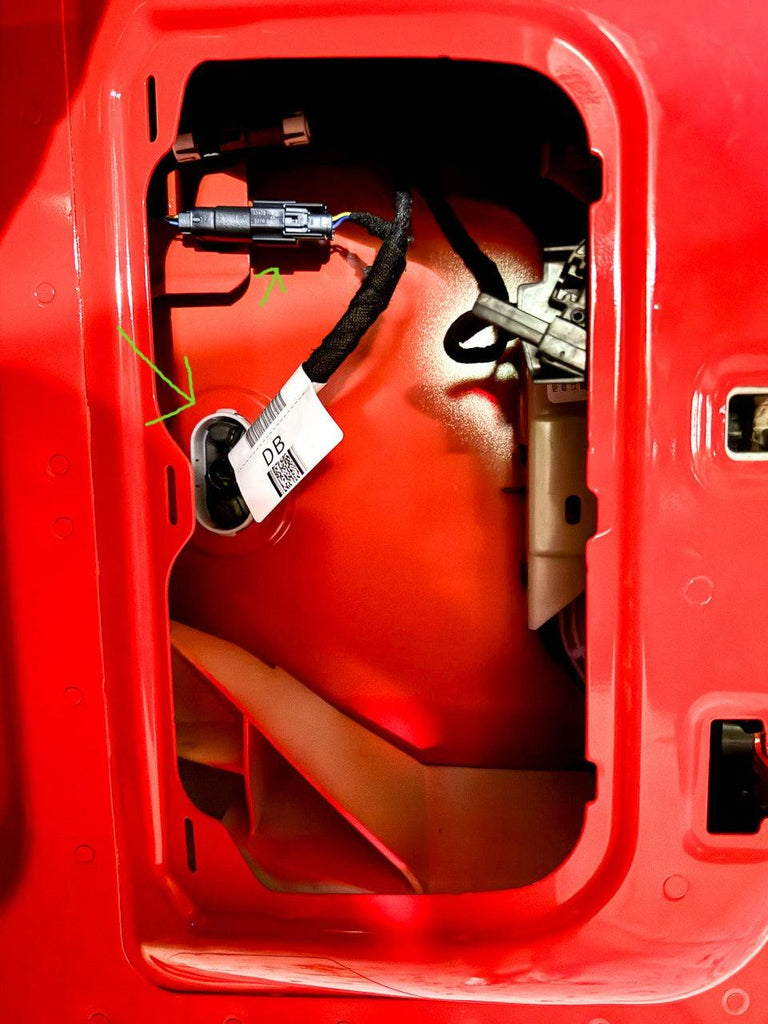

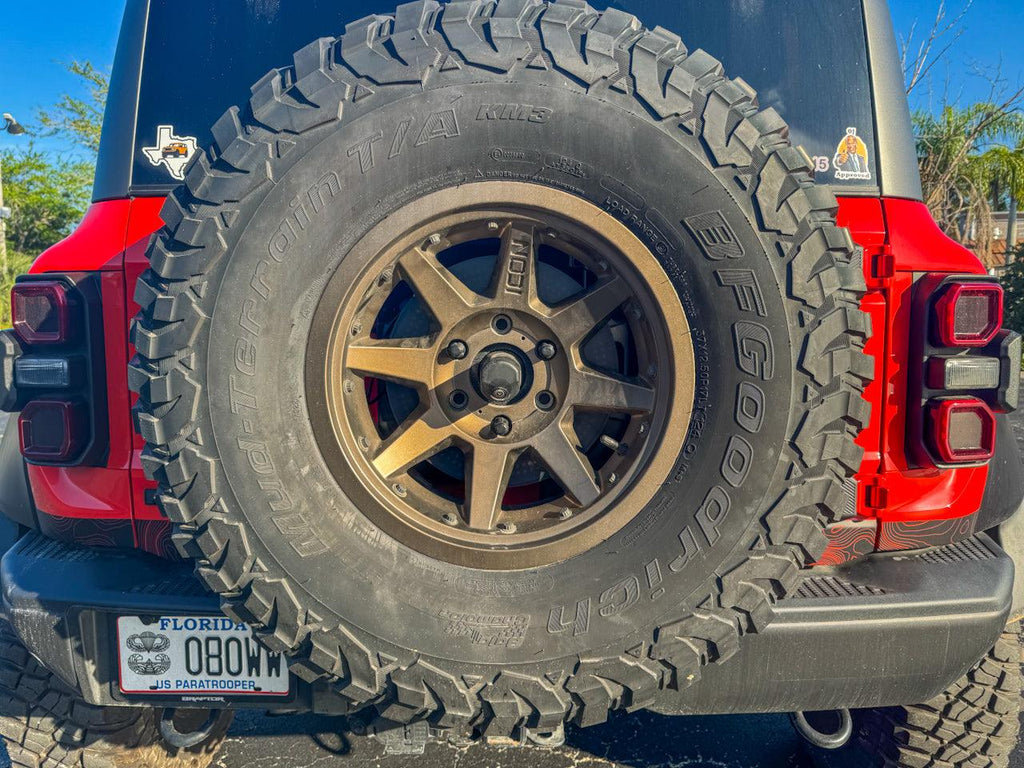

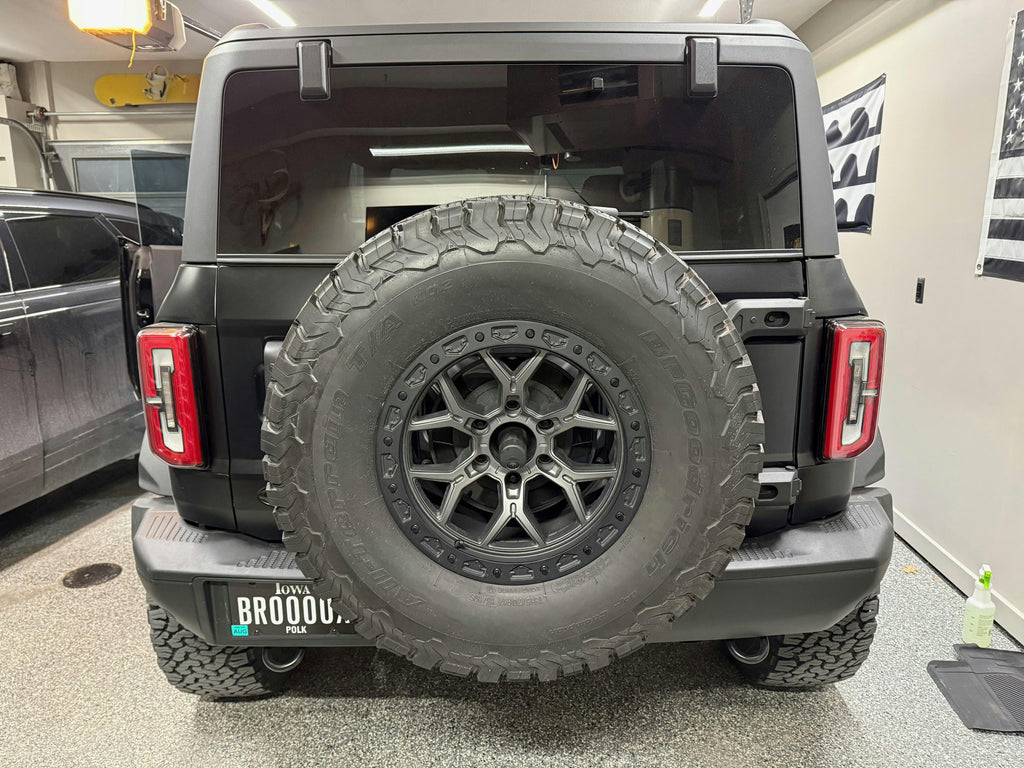

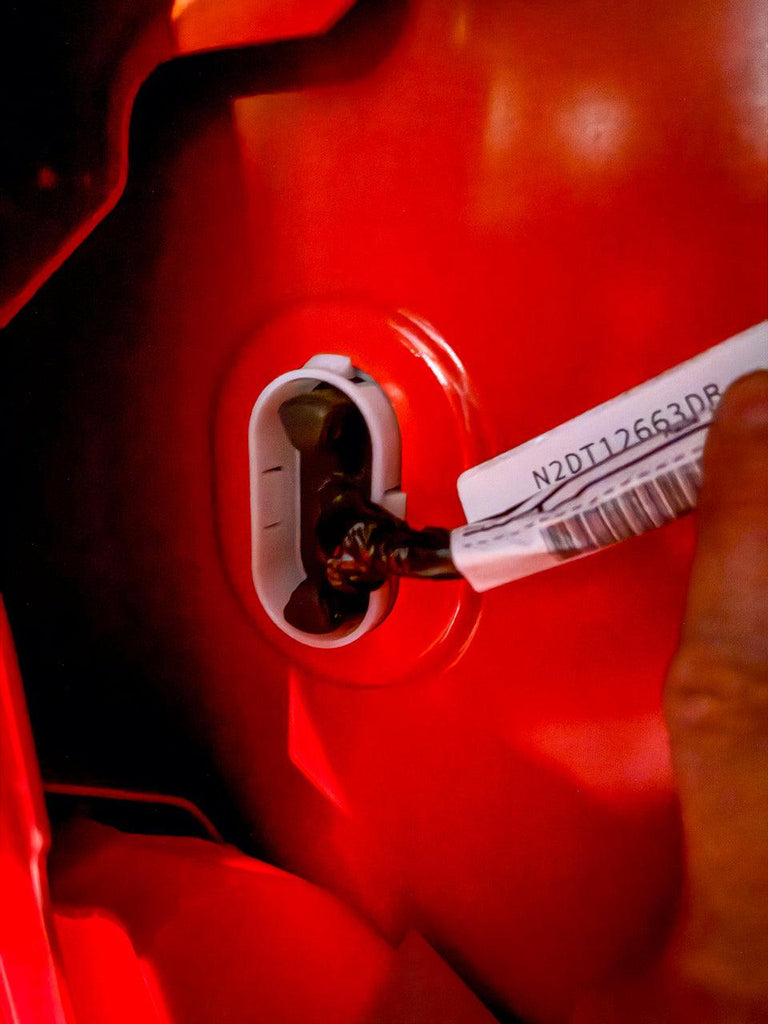

Remove spare tire.  Slip the ring over the tire carrier with the LEDs facing outward.  Situation the wiring on the left side of the so it can be routed inside the grommet of the tail gate.

Remove the plastic trim from the back of the tail gate using a trim tool on the left side, or your fingers on the top right corner.  The left side of the trim piece has pops running vertically.

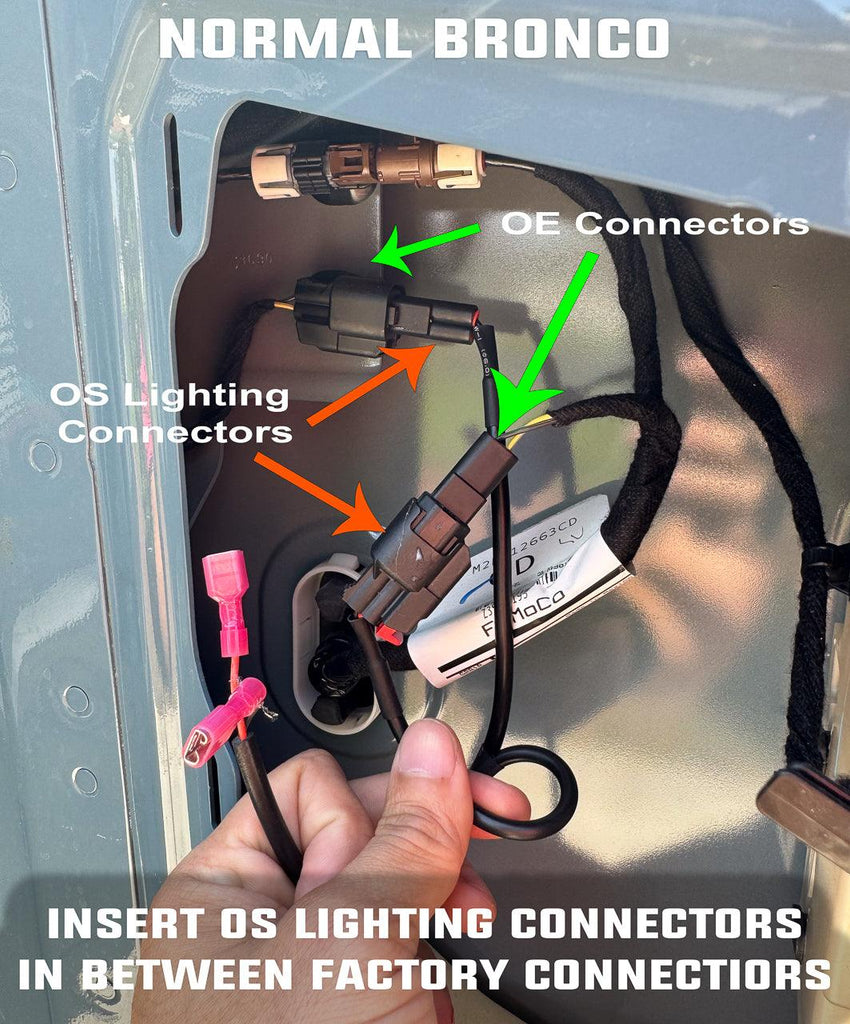

For all Broncos minus the Raptor, you will find a connector inside the tailgate.  The two pin connector will plug and play into the supplied harness.   Your wiring is done.  Remount the tire now.

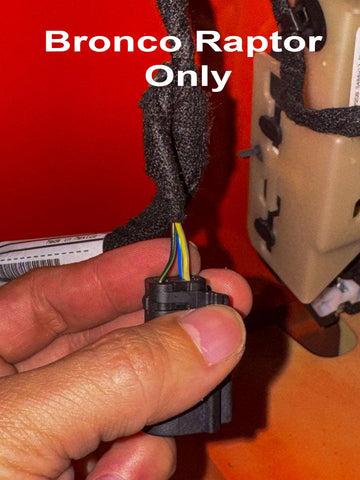

For Bronco Raptor owners, you will have to tap this wiring.  Black with green is ground and yellow is the positive for the brake.  It is not recommended that you use the blue wire as it is for the clearance lighting.

Bronco Raptor owners can also tap the line on the outside of the vehicle or disassemble the third brake light mount and tap the wires inside there for increased weather proofing.

The most weatherproof method is to run it into the tailgate though.  Once you have completed the connection, your wiring is done.  Remount the tire now.
