Fitcamx Integrated OE Style 4K Dashcam
4K Front, Front / Rear, and 4K Front / Rear Options
The benefits of a dashcam almost don't have to be explained in this day and age. If a picture is worth a thousand words, then what is a video worth? Sometimes you'll just be happy to capture some funny or weird stuff and be able to post it online.
Makes capturing any kind of drive a breeze. Going on a rally, auto crossing, or doing some other kind of race? You'll always have some kind of footage from the day without even thinking about it.
IMPORTANT Requires mid package or higher (auto dimming rearview mirror) for plug and play installation. If you do not have the mid package or higher, you CAN use the hardwire kit instead. Mounting a rear camera with the SOFT top may be trickier vs a hard top. It is NOT waterproof.
The rear camera has a quick disconnect close to the camera which can be utilized to disconnect the camera when removing the hard top.
Real Plug and Play
FITCAMX dash cam has brand-new methods for power from Auto-dimming rear view mirror with hidden wiring and easy installation with the method of plug to plug. No need to remove A-pillar and connect the car fuse box and the cigarette lighter.

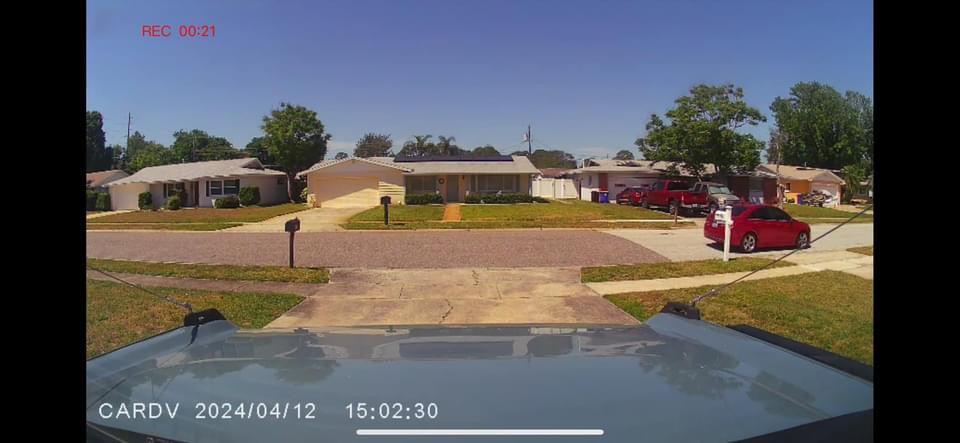

Sample Video
Installation

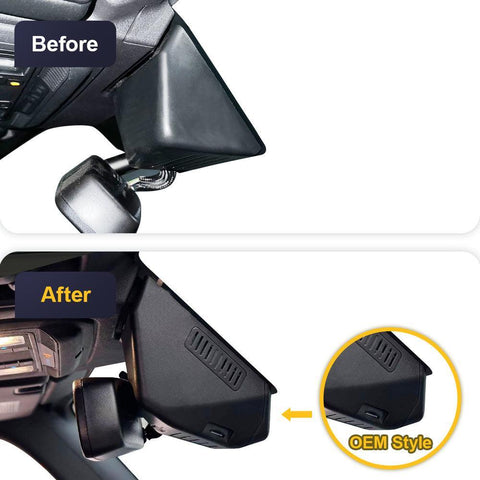

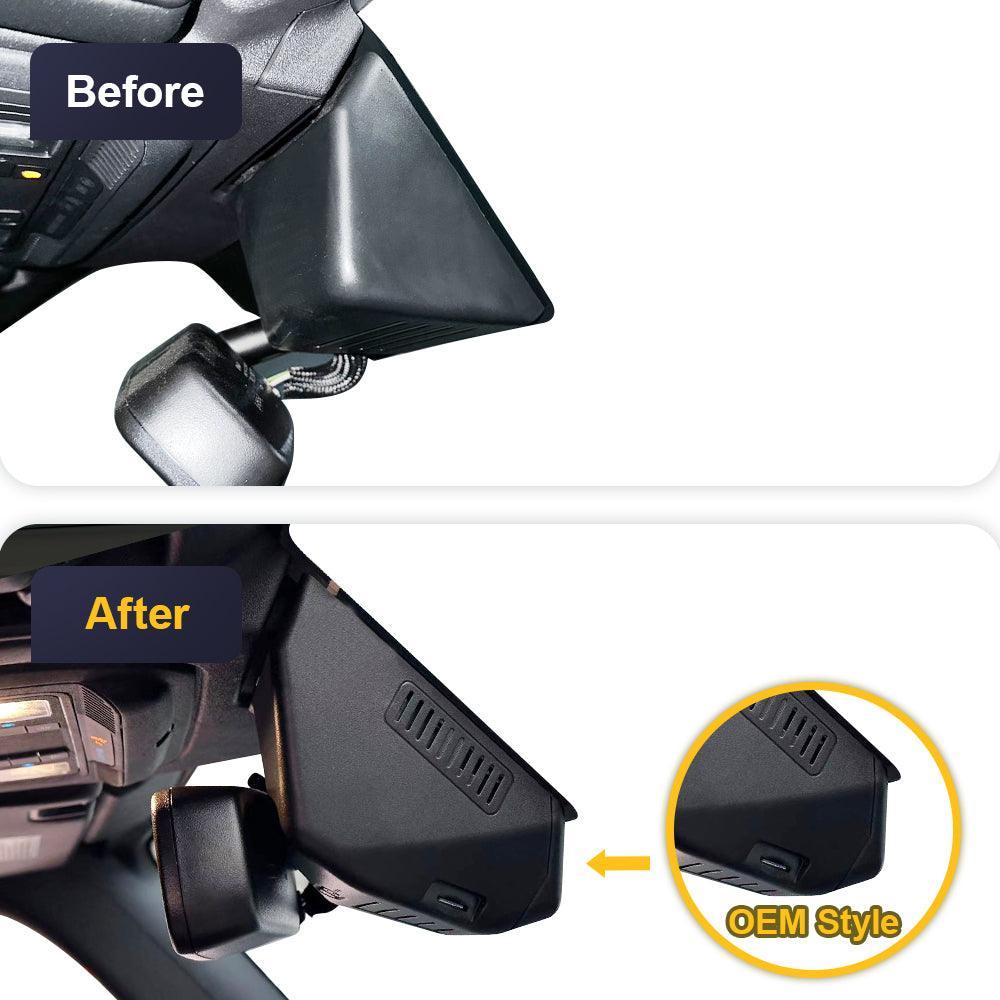

OEM Hidden Design
The OEM-style dash cam with a 1:1 restoration of the original rearview mirror back cover shape design, which will not block the driving line of sight.
UHD 4K Video
Adopted with f/1.6 big aperture lens and Novatek chip to enable high-definition video at 2160P/30fps, Fitcamx OEM style dash cam can improve image performance in all aspects. It has quite smooth picture and video quality, and can record clear video under low or high light.

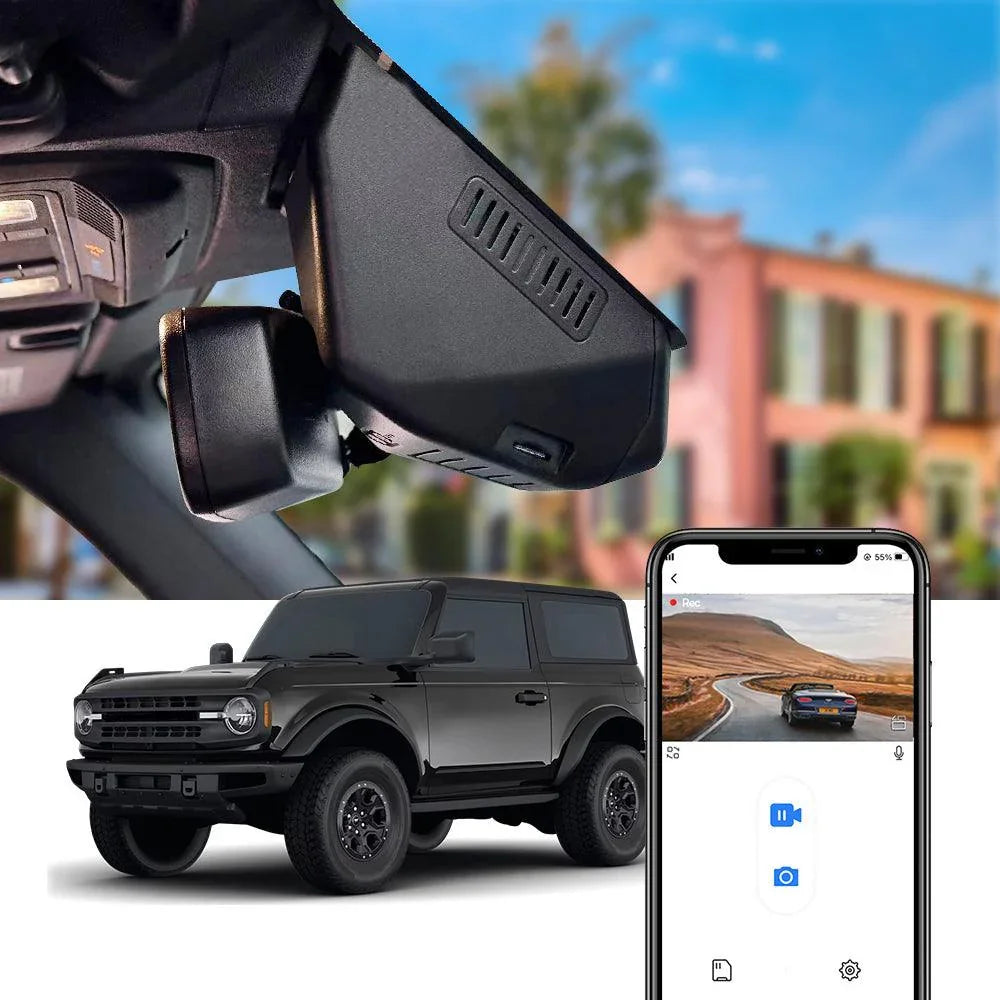

With Built-in WiFi
Using phone APP to connect the WiFi of FITCAMX dash cam for downloading videos and sharing them to your social media. Downloading videos is no need for mobile data traffic. (support in Android & IOS)
G-Sensor & Lock
G-Sensor can automatically detect sudden collisions during driving, and immediately save the relevant lens video to the file to prevent overwriting, thereby protecting your video evidence.
Loop Recording
Auto overwrite the oldest videos with the newest when card reaches capacity.( Support 128GB SD card Max.)When the car starts, the driving recorder will automatically turn on. When the car is locked, the driving recorder will automatically turn off.
SPECS
| Type | 4K Single Front Cam | 2K Dual Cam | 4K Dual Cam |
|---|---|---|---|
| CPU | Novatek 96670 | Novatek 96670 | Novatek 96670 |
| Front Resolution | 2160P (4K) | 1440P (2K) | 2160P (4K) |
| Rear Resolution | / | 1080P(FHD) | 1080P(FHD) |
| Video Fixel | 8MP | Front 4MP+Rear 2MP | Front 8MP+Rear 2MP |
| Wide Angle | Front 170° | Front 170°+ Rear 140° | Front 170°+ Rear 140° |
| Maximum Aperture | Front f/1.6 | Front f/1.6+ Rear f/2.0 | Front f/1.6+ Rear f/2.0 |
| WiFi | 2.4Ghz | 2.4Ghz | 2.4Ghz |
| Mobile APP | Apple iOS & Android | Apple iOS & Android | Apple iOS & Android |
| Front Cam Installation | No Wiring | No Wiring | No Wiring |
| Rear Cam Installation | / | Hard wire from the front cam | Hard wire from the front cam |
| Parking Mode | No. (If required, please contact us to purchase a fuse box kit.) | No. (If required, please contact us to purchase a fuse box kit.) | No. (If required, please contact us to purchase a fuse box kit.) |
| Loop Recording | Yes | Yes | Yes |
| Driving Collision Sensing | Yes | Yes | Yes |

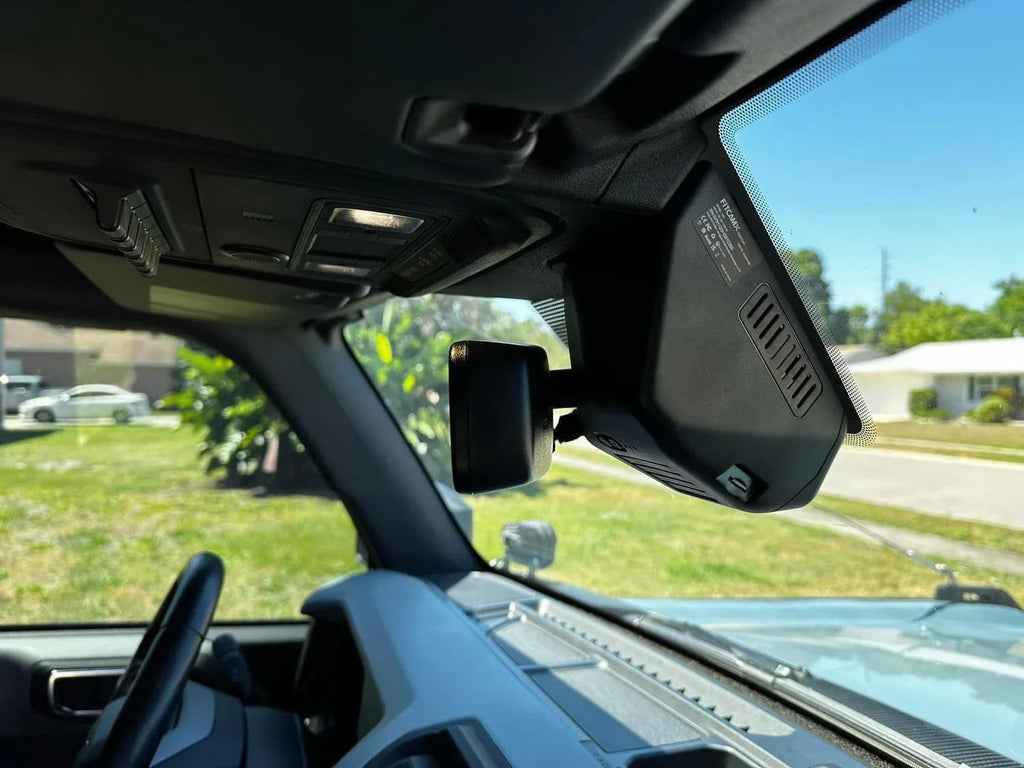

Front Cam Installation
Takes power from the Overhead console panel.
Rear Cam Installation
The rear camera is connected from the front cam and doesn't need to be connected to the power supply separately.
4K Dual Cam Video footage download, it is recommended to use a computer to download and watch the video: Download Here
Rear Cam Position
Mount on the rear windshield or facing cabin.
What's in the Box
Front Cam Package
- Front cam
- 64G Micro SD card
- Y-cable
- Pry removal Tool
- Memory card reader
- User manual
Front and Rear Cam Package
- Front cam
- 64G/128G Micro SD card
- Y-cable
- Rear cam
- Rear cam cable
- Pry removal Tool
- Memory card reader
- User manual
Double Protection
FITCAMX is eager to enhance our customer's driving experience with an innovative design and a reliable quality. We are committed to R&D and innovation in the imaging field, providing world-class visual perceptual solutions for industry customers and users.
Parking Mode Capture
1. After connecting the fuse box, there will be a parking mode function.
2. The parking mode can be turned on and off in the APP.
3. Parking mode is vibration sensing and will not be recorded 24/7.
4. Parking mode will not drain the battery, but if you do not drive for a long time, it is recommended to turn off the parking mode on App settings.
Warranty
1 year
